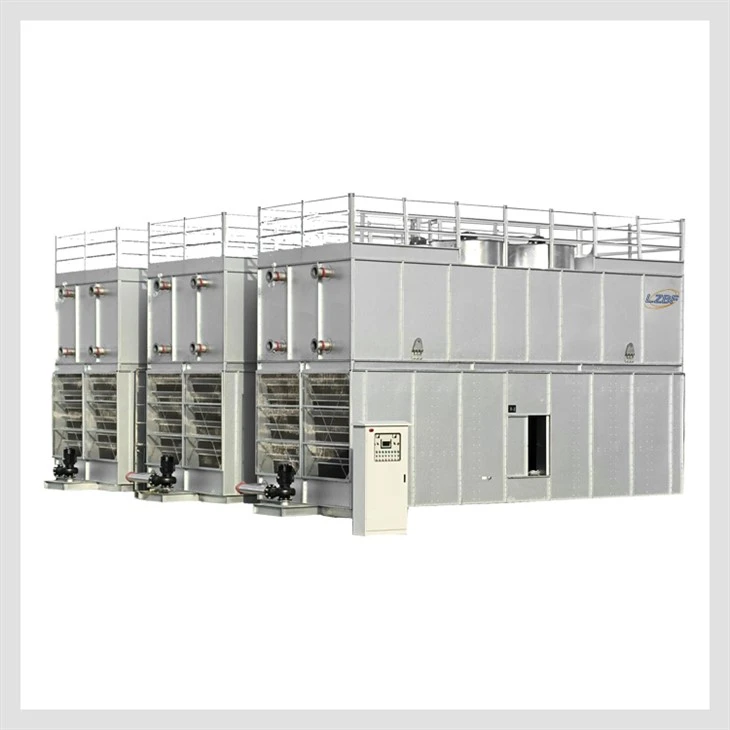

Evaporative Cooled Condenser

The evaporative cooled condenser uses water and air as the cooling medium, when working, the cooling water is sent to the upper nozzle by the water pump and sprayed on the outer surface of the condenser discharge pipe of the evaporative cooled condenser to form a water film; the high temperature vapour refrigerant enters into the condenser discharge pipe group of the evaporative cooled condenser, the heat is absorbed by the cooling water and then flows out from the lower part. High-temperature vapour refrigerant enters into the condenser tube group by the evaporative cooled condenser, and flows out from the lower part after the heat is absorbed by the cooled water, part of the absorbed water evaporates, and the rest of the water falls into the water collecting plate.

The fan forces the air to sweep through the condenser tube at the speed of 3-5m/s to promote the evaporation of the water film to strengthen the condensation of exothermic condenser of the evaporative cooled condenser and to make the heat absorbed water droplets be cooled by the air during the process of falling, the evaporated water drops are cooled by the air. Air cooling, evaporation of water vapour with the air is discharged by the fan, not evaporated water droplets are blocked by the dehydrator falls back to the water plate; evaporative cooled condenser water plate with a float valve, automatically replenish the cooling water.

Evaporative cooled condenser low energy consumption: compared with the traditional air-cooled condenser, evaporative cooled condenser condensing temperature in the wet bulb design temperature of 8.3 ℃ within the compressor power to save at least 10% of the power consumption, the fan power of the air-cooled fan power of one-third of the power of the pump is about a quarter of the power of the cooling tower pump. The power of the pump is about one quarter of the power of the cooling tower pump.

Evaporative cooled condenser low operating costs: the cooling tower, water pumps effectively combined into one, reducing the installation costs of separate components. evaporative cooled condenser complete set of equipment power consumption is reduced, evaporative cooled condenser maintenance costs and Equipment consumption costs are reduced.
